ENGINE
Engine Type 1261cc liquid-cooled longitudinally mounted 90° V-4
Bore and Stroke 78mm x 66mm
Compression Ratio 10.8:1
Valve Train DOHC; four valves per cylinder
Induction PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8-holes per injector
Ignition Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVE TRAIN
Transmission Five-speed
Final Drive Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension 45mm HMAS cartridge fork; 4.6 inches travel
Rear Suspension HMAS gas-charged single shock with five-position spring preload adjustability; 4.8 inches travel
Front Brakes Dual full-floating 310mm discs with LBS three-piston calipers
Rear Brake Single 316mm disc with LBS three-piston caliper; Optional ABS
Front Tires 120/70ZR-18
Rear Tires 170/60ZR-17
DIMENSIONS
Rake 26.0° Caster Angle
Trail 98mm (3.9 inches)
Wheelbase 58.7 inches
Seat Height 31.1 inches (+/- 0.6 inches)
Curb Weight 730 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity 7.7 gallons
OTHER
Available Colors Candy Dark Red

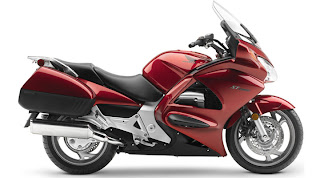

Model ID ST1300 ABS
FACTORY WARRANTY INFORMATION
3 years Unlimited mileage
